BRK6310MT

BRK6310MT
BRK6310MT
For XEM6310MT integration module
1-100 pcs
Add to cart

Breakout to 2-mm Headers and SMA Connectors

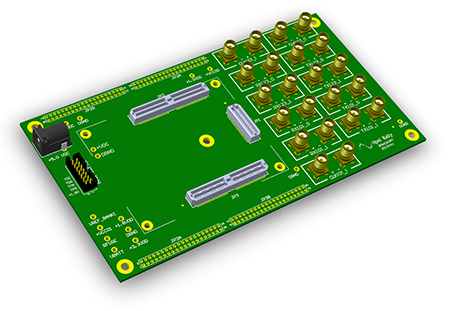

The BRK6310MT breakout board provides an easy connection to all three high-density connectors on the XEM6310MT by routing all signals to four 40-pin 2-mm headers and 22 (!) SMA connectors. It also includes a power connector to provide +5VDC to the XEM6310MT.

Notes: 2-mm headers are not included. The SMA connectors and high-density connectors for mating to the XEM are pre-installed on the BRK6310MT.

JTAG Connections

Access to the FPGA’s JTAG interface is provided by a 2-mm connector compatible with the Xilinx JTAG Cable for applications such as ChipScope.

Technical Specifications and Support

Design Template

Detailed physical dimensions are available in the ZEM4310 User’s Manuals. Full Altium Designer design files and Gerber files are available to on our Download Page.
