Breakout to 2-mm Headers

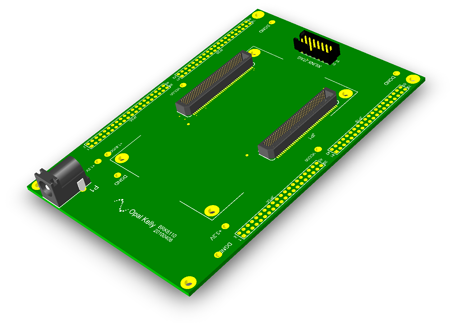

The BRK6110 breakout board provides an easy connection to both high-density connectors on the XEM6110 and XEM6010 by routing all signals to four 40-pin 2-mm headers. It also includes a power connector to provide +5VDC to the XEM6110/XEM6010.

The high-density connectors for mating to the XEM are pre-installed on the BRK6110.

Note: 2-mm headers are not included.

JTAG Connections

Access to the FPGA’s JTAG interface is provided by a 2-mm connector compatible with the Xilinx JTAG Cable for applications such as ChipScope.

Technical Specifications and Support

Design Template

Detailed physical dimensions are available in the XEM6010, XEM6110, and XEM6310 User’s Manuals. Full Altium Designer design files and Gerber files are available to on our Download Page.
